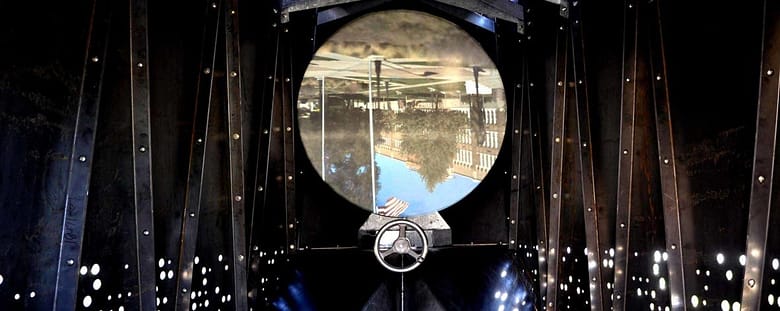

Located on the main campus of Salt Lake Community College in Utah are three cameras Obscura. The largest of the three, fabricated by Maloya, is situated on the west side of the campus. It is formidable in size and scope yet elegant in design evoking both curiosity and visual excitement. Fabricated from a combination of both CorTen and galvanized steel its complex and unique design draws visitors from far and near.

Maloya was awarded this project based on their ability and experience in the fabrication of extremely complex and large format design structures. The first step was to use the Design/Build process using RHINO CAD files and converting them to SolidWorks software.  Next, shop drawings were created from 3D Modeling.  Due to the very large size of the project Maloya employed LEAN manufacturing methods to move the project efficiently and safely through the many work centers.

CLIENT: Salt Lake Community College ARCHITECT: KBAS LOCATION: Salt Lake City, Utah DIVISION: Architectural / Complex Projects SOLUTIONS USED: Design Assist, CNC Laser Technologies, CNC Bending & Forming, MIG & TIG Welding, Assembly, Finishing, Quality Assurance INDUSTRY: Construction / Building Solutions

CHALLENGE

Rhino model supplied that had to be used for development.

Unique shapes that had to be formed and fit together.

OUR SOLUTIONS

Converted to SolidWorks by remodeling over the part envelopes.

Methodized and sequenced build process.

Developed unique tooling to form and bend parts.
